User manual for the ROC web application

Introduction

This ROC-E / ROC-M application manual describes all functions and how they work.

It covers use of the application on a ROC-E robot and on a ROC-M manager.

Home page

On a ROC-E robot

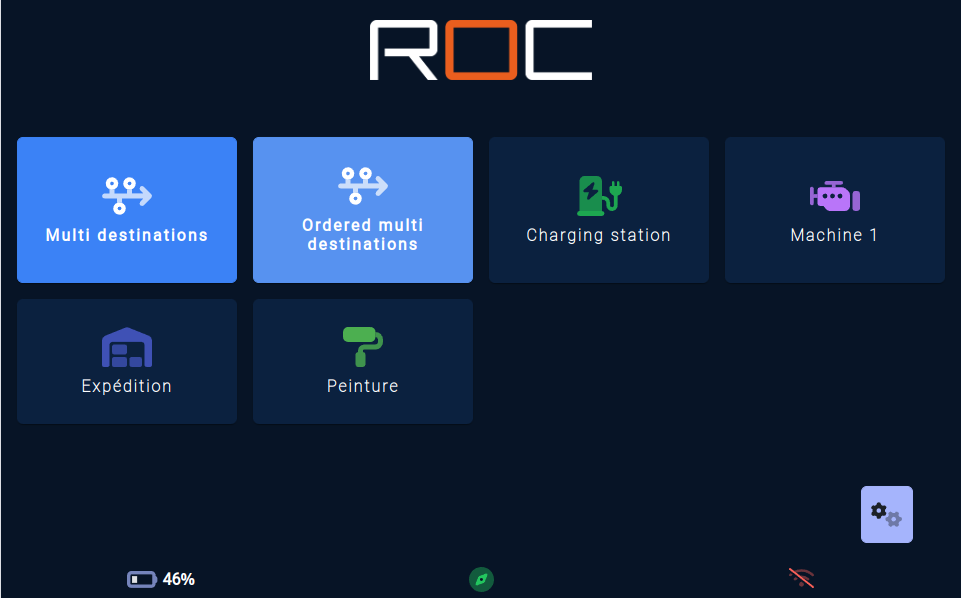

The home page displays the list of destinations stored in the robot's map in the form of a large button.
Pressing one of these buttons sends a command to the robot to move to the associated destination.

The button at bottom right gives access to the application configuration.

Multi destinations

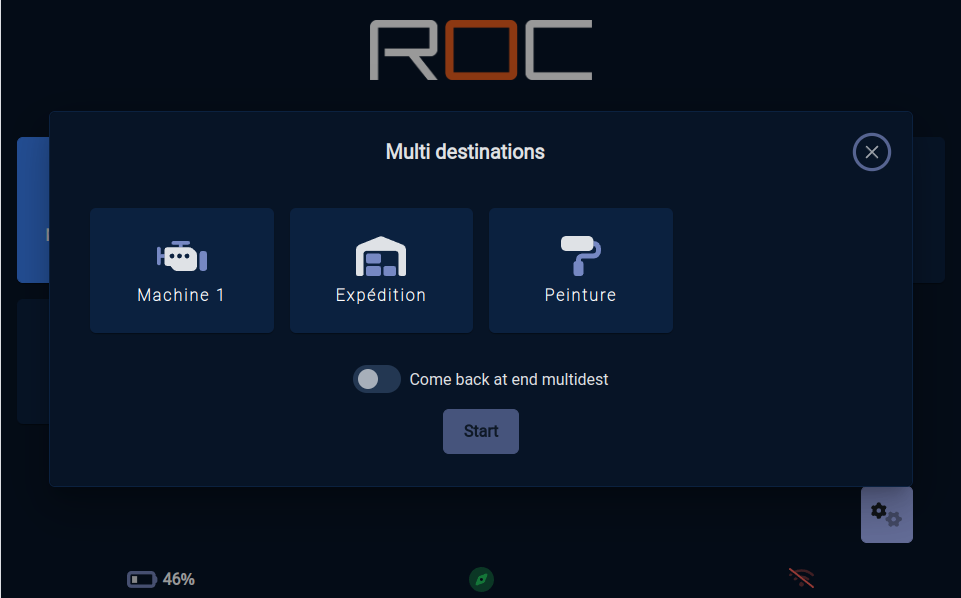

By clicking on the Multi destinations button, you can ask the robot to move to several positions in the same mission by selecting the desired destinations. The robot will move from destination to destination, from closest to closest.

Once the robot has reached a destination, the operator can only release the robot to move on to its next destination (he cannot ask the robot to go to another destination).

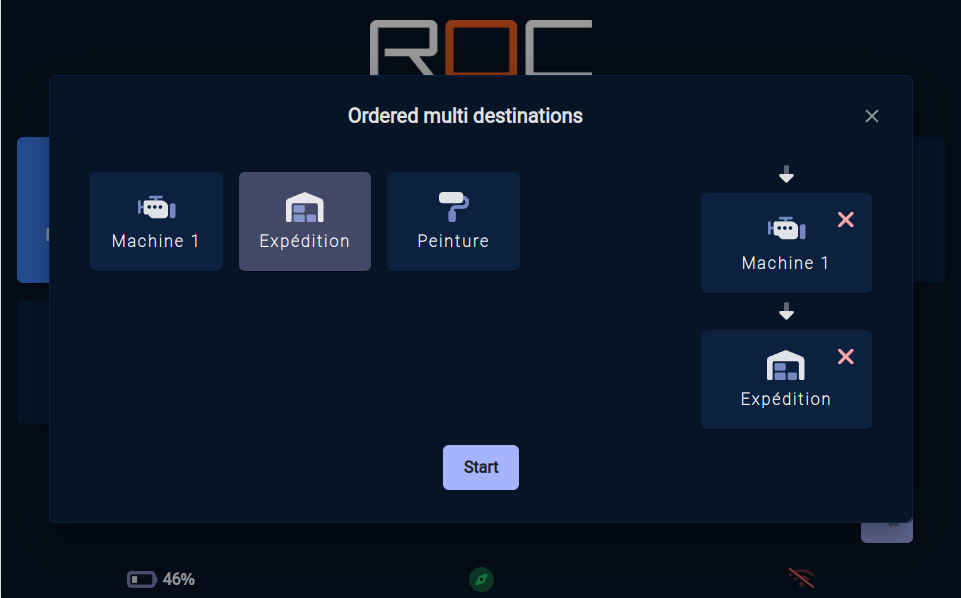

Ordered multi destinations

By clicking on the Ordered multi destinations button, you can instruct the robot to move to several positions in the same mission in a fixed order by selecting the desired destinations. The robot will move from destination to destination in the desired order.

Once the robot has reached a destination, the operator can only release the robot to move on to its next destination (he cannot ask the robot to go to another destination).

Predefined messages

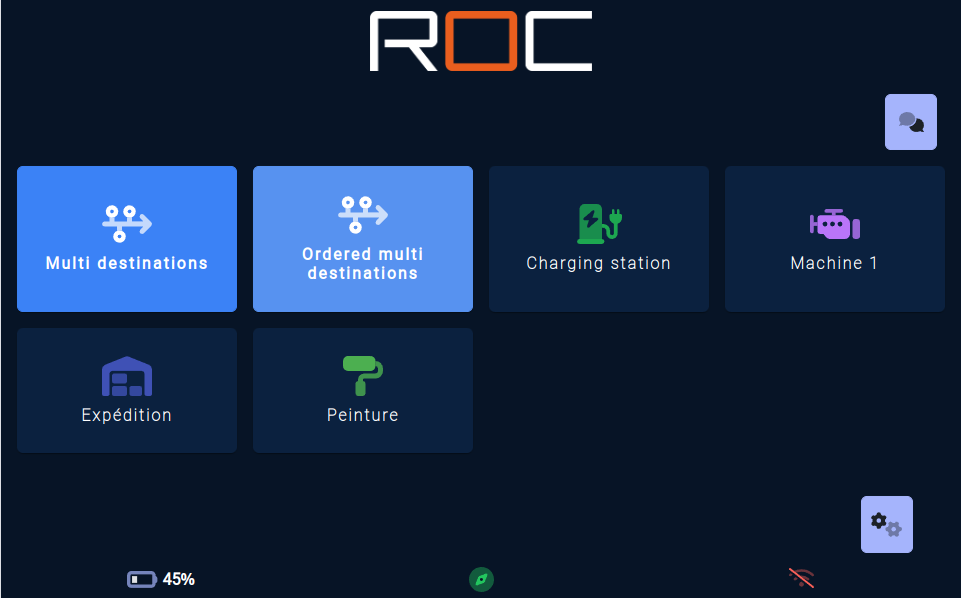

If predefined messages have been configured, a button with 2 bubbles appears at the top right.

This button is used to select a predefined message to be displayed once the robot has reached its destination for the current mission.

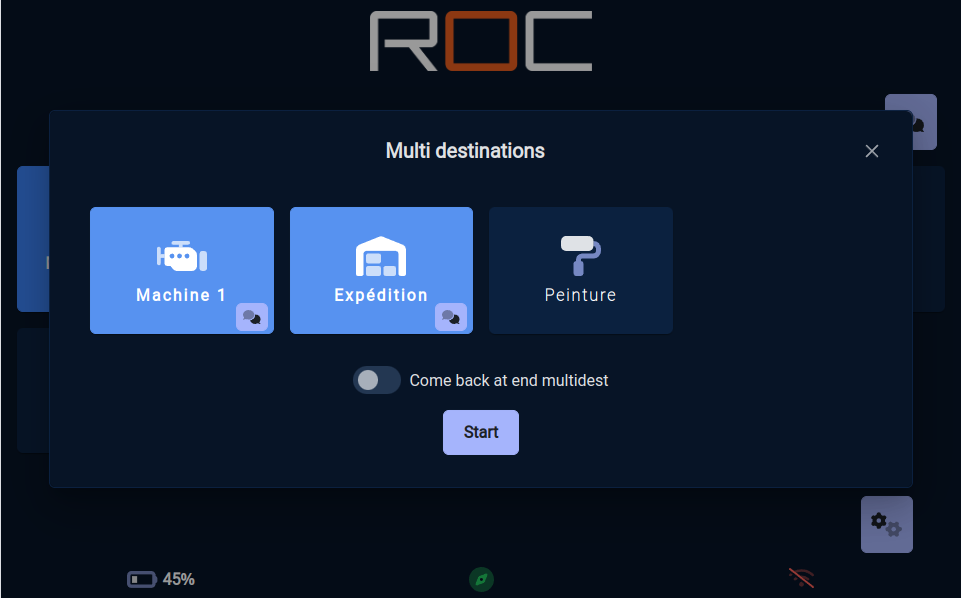

In the case of multi destinations, the message can be customised for each destination by clicking on the button associated with the destination.

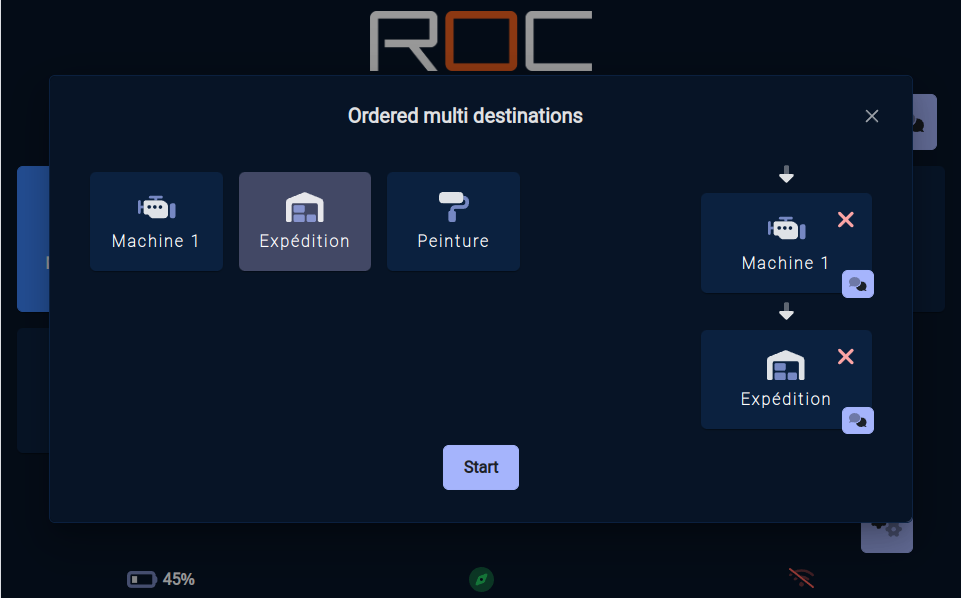

In the case of ordered multi destinations, the message can be customised for each destination by clicking on the button associated with the destination.

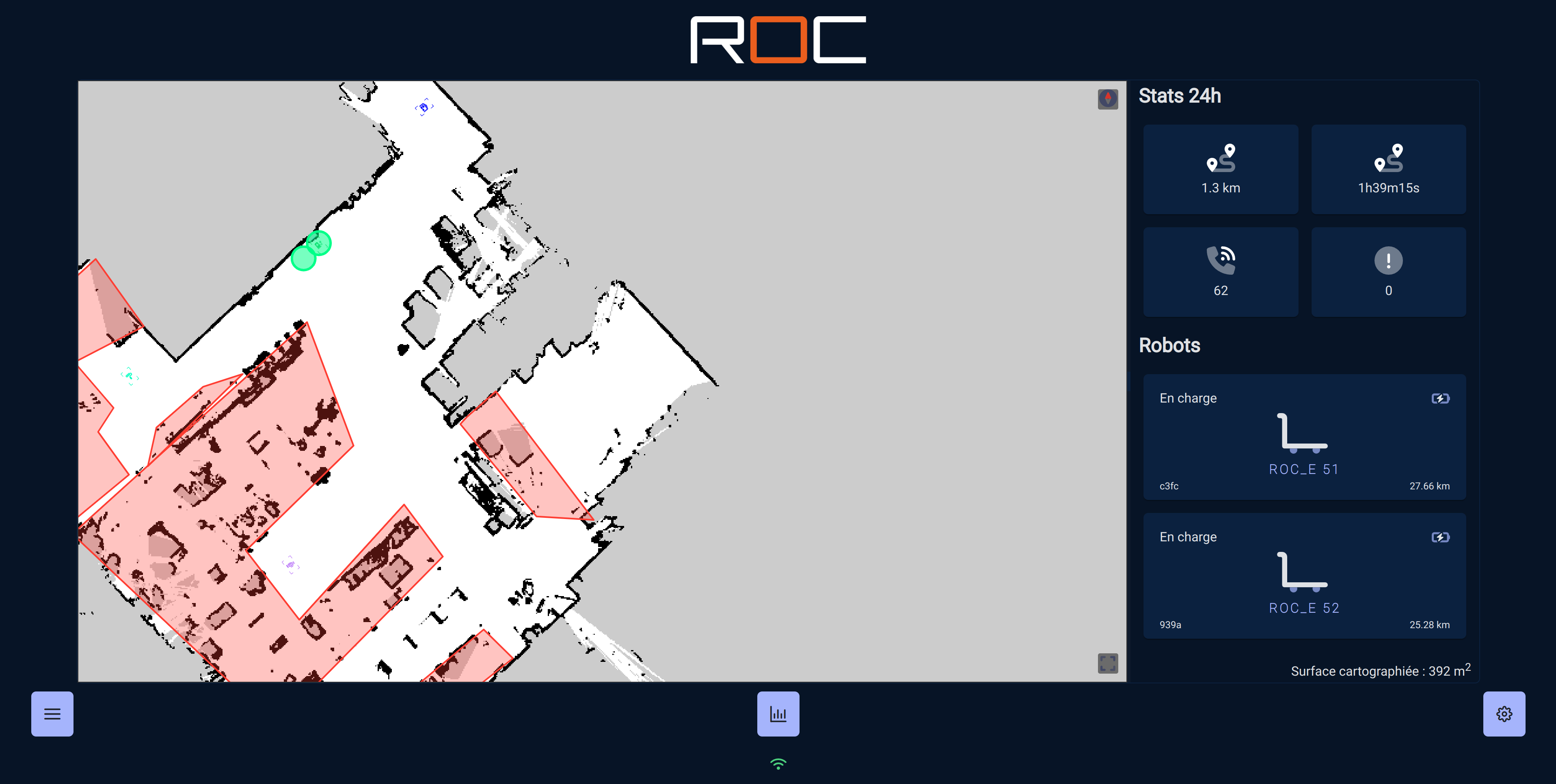

On a manager

3 buttons at the bottom of the screen give access to different sections:

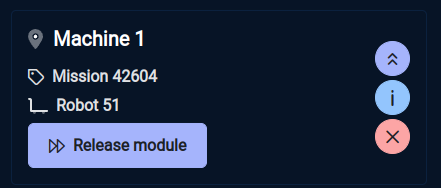

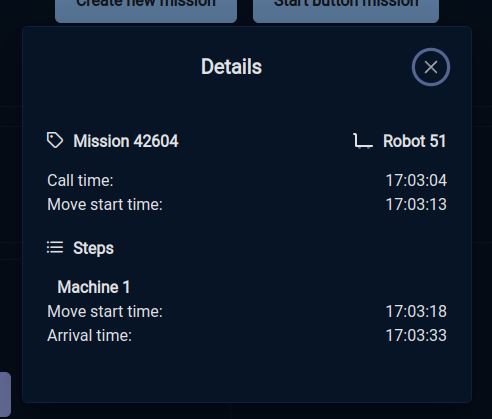

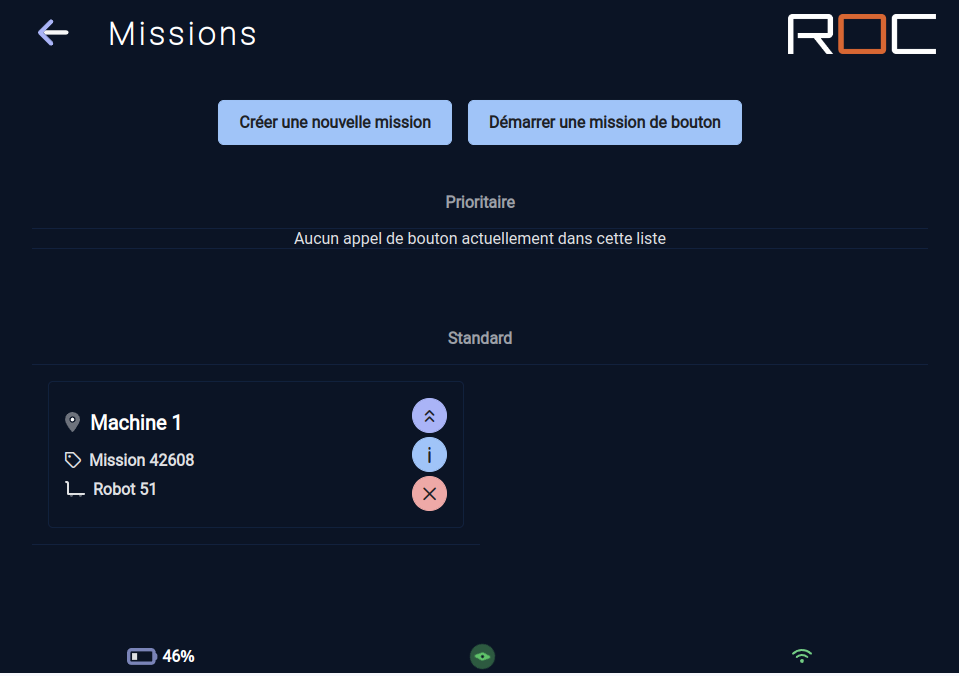

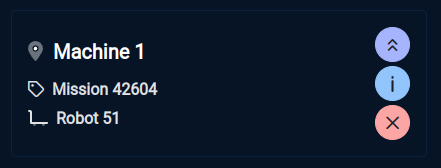

• The button on the left gives access to the list of current missions.

• The button on the right gives access to the application configuration.

• The central button gives access to usage statistics.

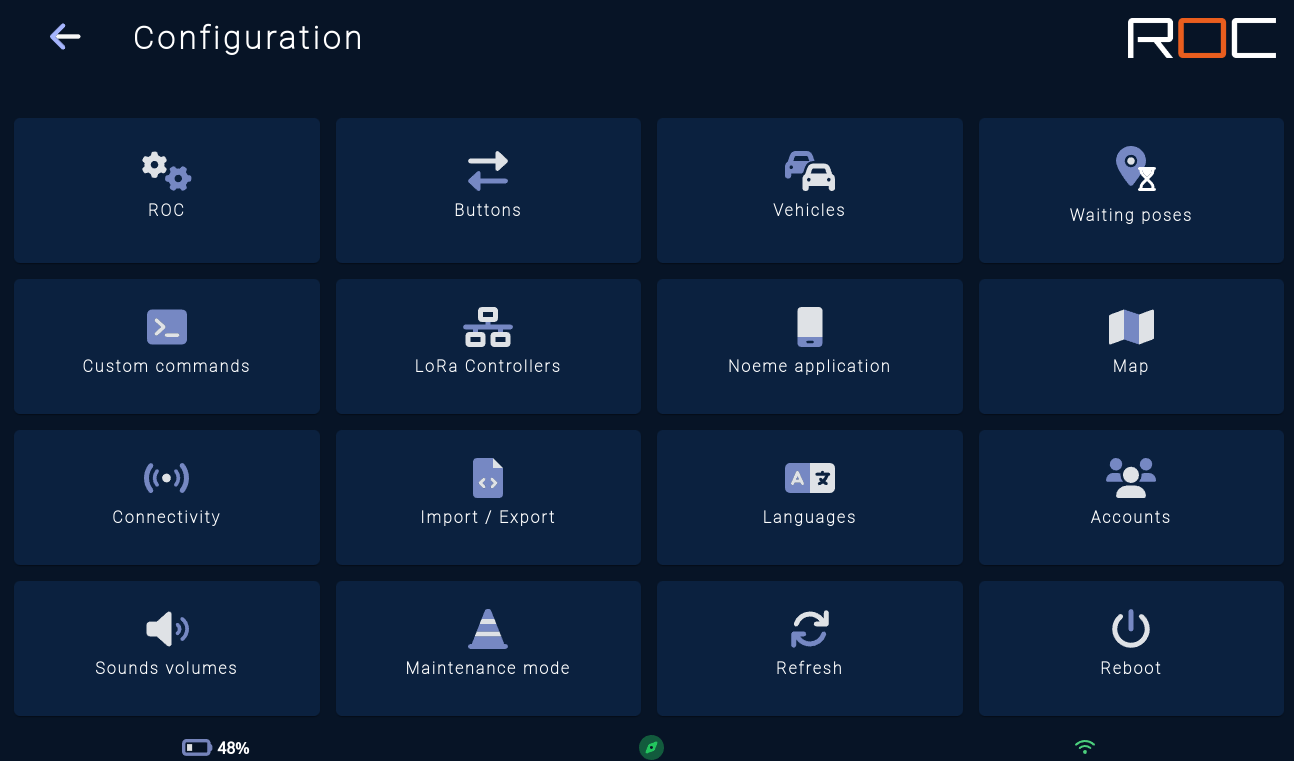

Configuration

The configuration page allows you to configure the tool.

Depending on your configuration (e.g. manager or not), some options may not be available.

This page takes you to the following sections:

• ROC: for general module configuration.

• Buttons: add / modify / delete call buttons.

• Vehicles: manage the list of fleet vehicles.

• Waiting poses: add / modify / delete waiting points.

• Custom commands: add / modify / delete custom commands.

• LoRa Controllers: add / modify / delete LoRa controllers.

• Predefined messages: add / modify / delete predefined messages.

• Noeme application: access the Noeme application.

• Map: manage destinations.

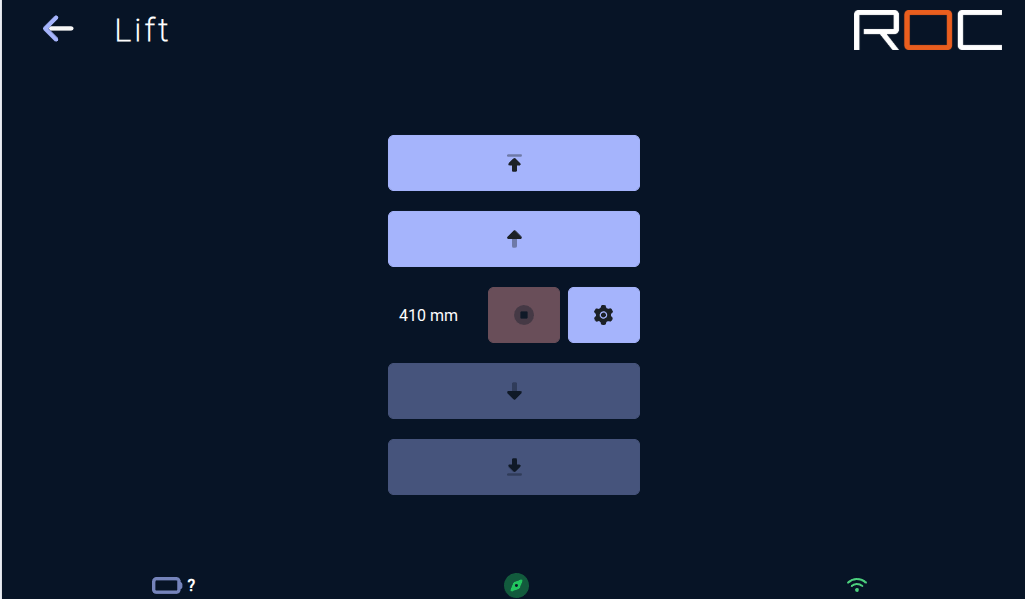

• Lift : to interact with the ROC-P module lift (visible only if the module is configured, see Vehicle - Size).

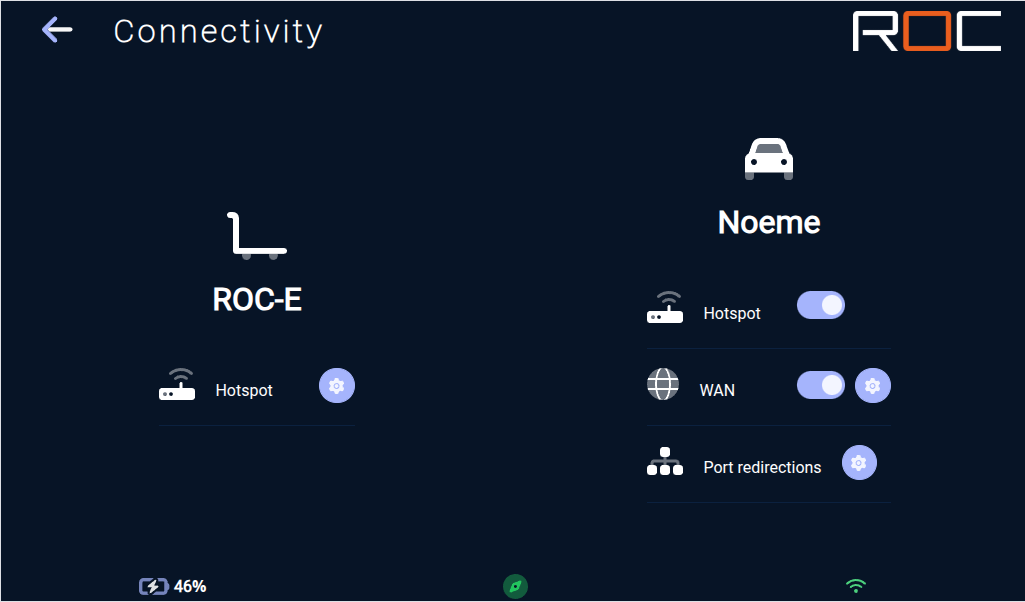

• Connectivity: manage the different WiFi connections of ROC and Noeme.

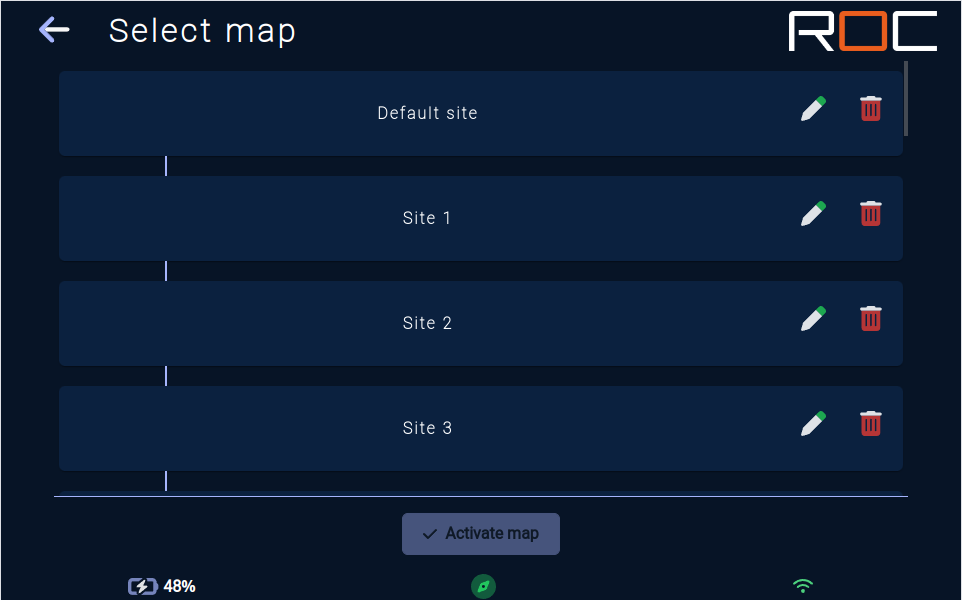

• Select map : manage the active map.

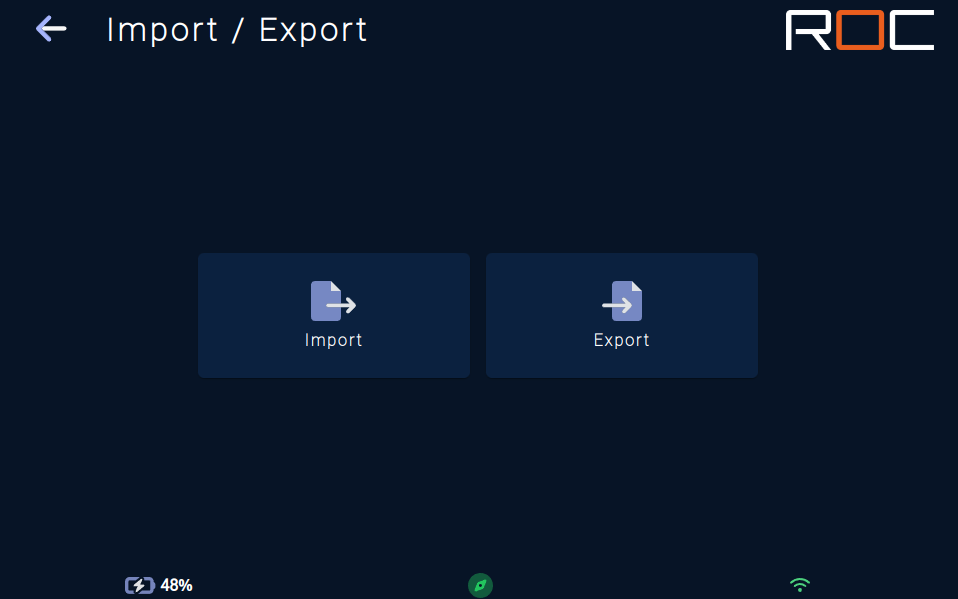

• Import / Export: export / import configurations.

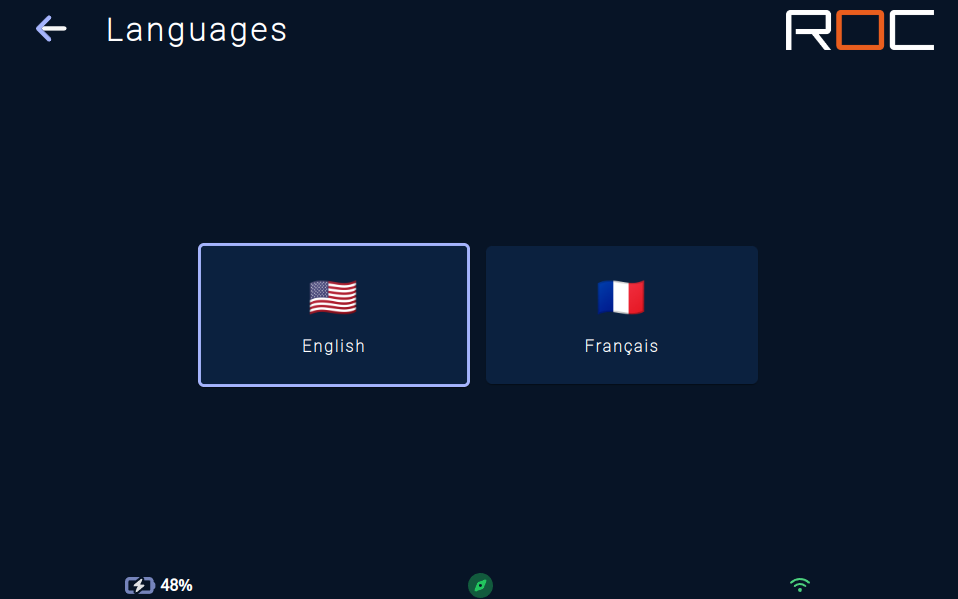

• Languages: select the interface language.

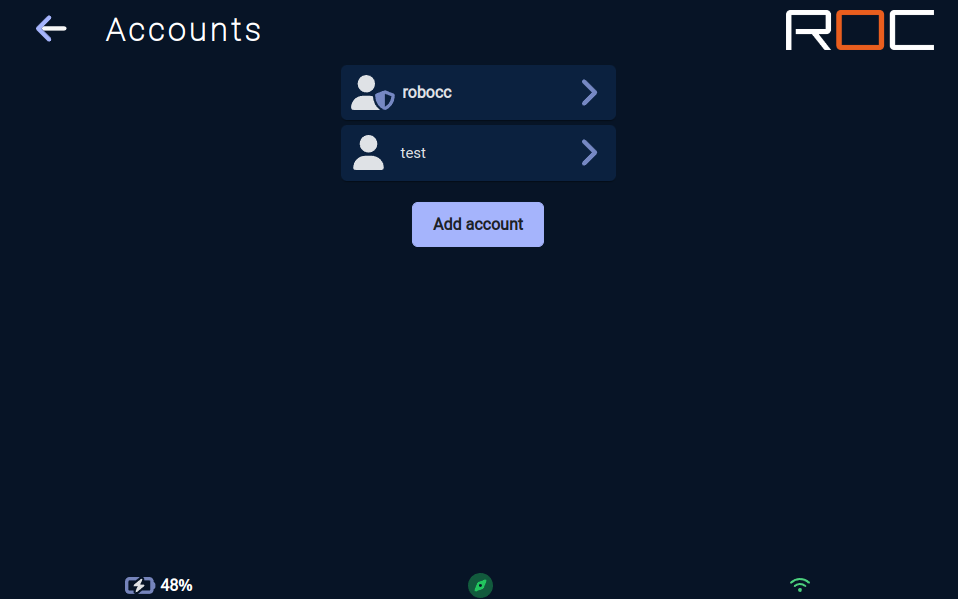

• Accounts: add / modify / delete a user account.

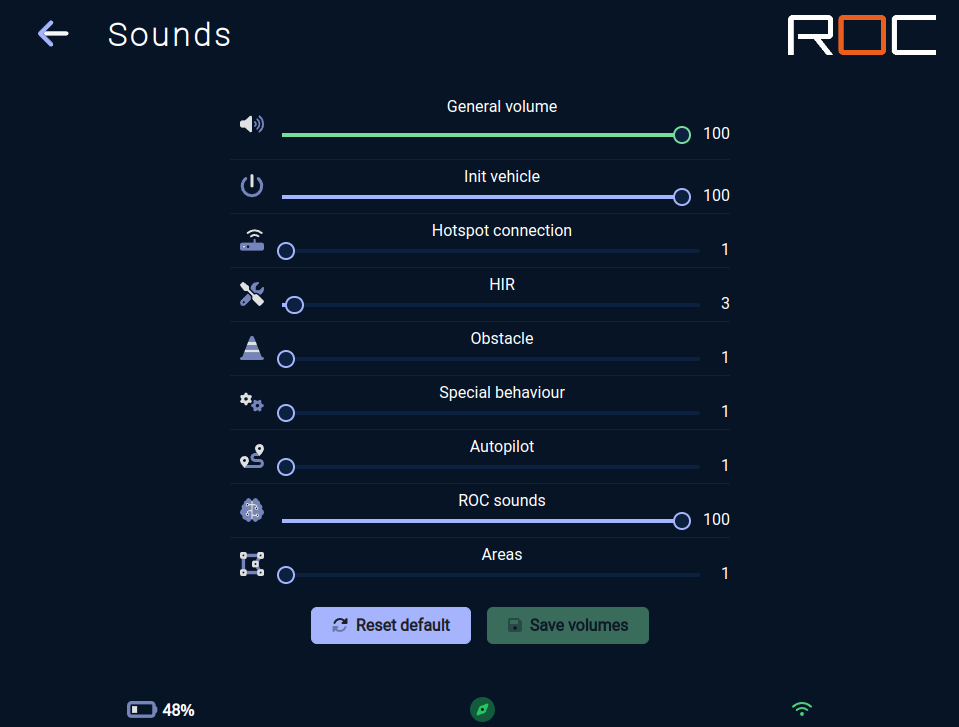

• Sounds volumes: configure different sound volumes.

• Maintenance mode: activate or deactivate maintenance mode (manager only).

• Refresh: update the page (perhaps useful when updating the application).

• Reboot: restart the ROC application.

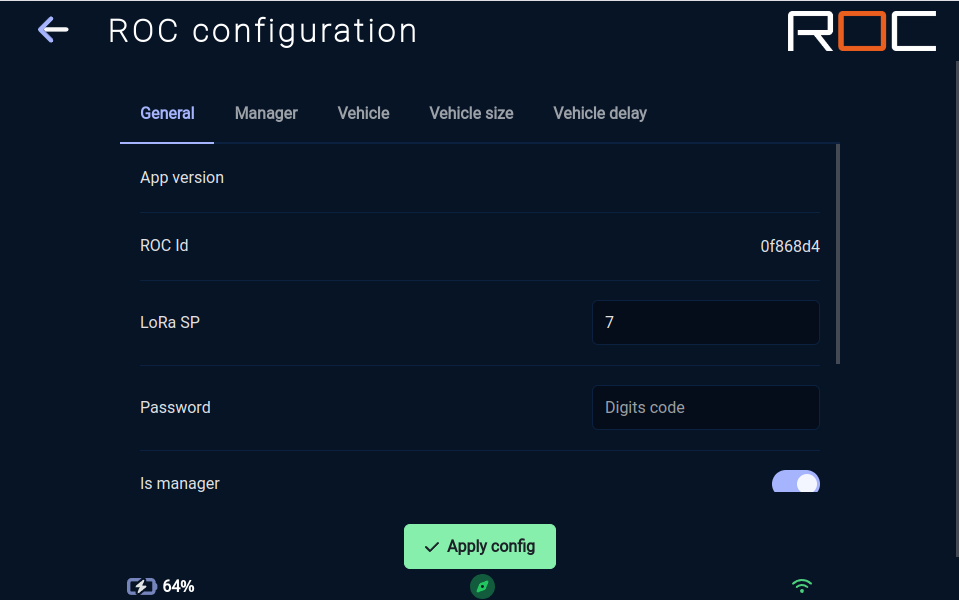

ROC

This configuration page lets you access certain information (application version, ROC Id...) and configure various application parameters.

General

This page allows you to view/modify the following parameters:

• App version: installed application version.

• ROC Id: unique module identifier.

• LoRa SP: configuration of LoRa communication spread factor; must be the same as call buttons, manager and other robots. Possible values from 7 to 12.
  The higher the value, the slower the communication but the longer the range.

• Password: password to access the configuration section.

• Is manager: indicate whether the active equipment is the manager or not.

• Is vehicle: indicate whether the active equipment is connected to a Noeme vehicle.

• Virtual keyboard: Whether or not to use the virtual keyboard.

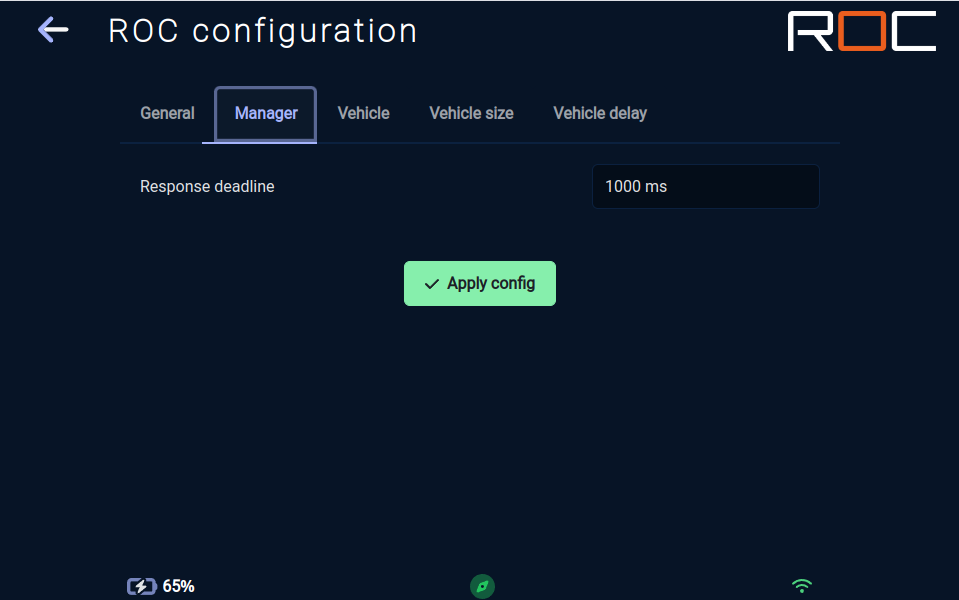

Manager

This page allows you to view/modify the following parameters:

If the manager is also a vehicle:

• Response deadline: waiting times for call equipments responses.

If the manager is not also a vehicle :

• Default response deadline: default waiting times for call button and LoRa controller responses.

• Vehicle response deadline : waiting times for vehicle responses.

• Allow multiple mission for the same button : allow to create multiple mission for the same button from API or Modbus.

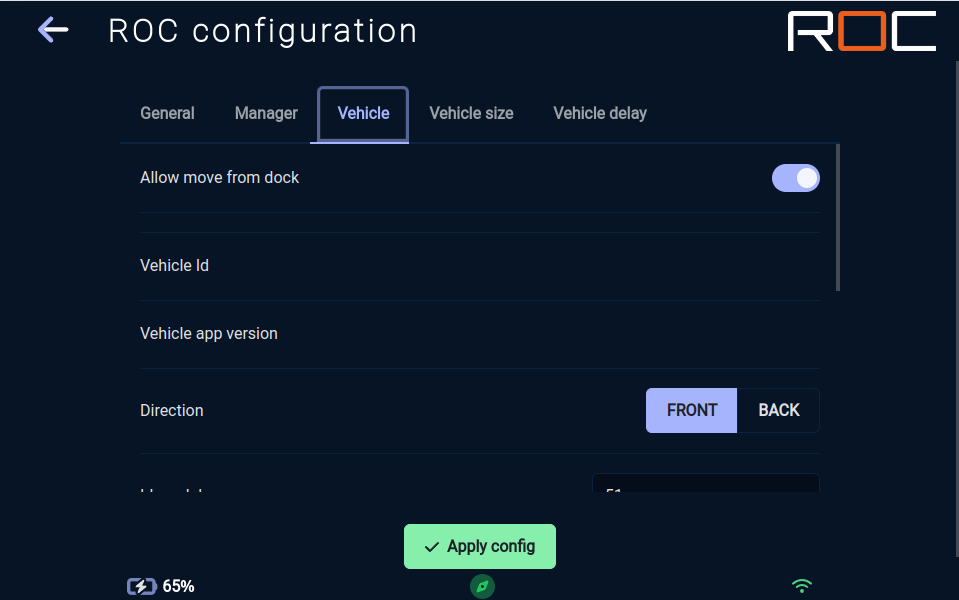

Vehicle

This page allows you to view/modify the following parameters:

• Allow move from dock: allow a user to start a new mission when the robot is waiting at its charging station.

• Vehicle Id: unique vehicle identifier.

• Mast position: to indicate the position of the mast on the robot; indicate Front if the mast is on the side of the vehicle's white lights, Back otherwise..

• Direction to the charging station: to indicate which way the vehicle should connect to the charging station; indicate Front for the vehicle to connect on the side of the vehicle's white lights, Back otherwise.

• LoRa module ID: LoRa module identifier for communication. Must be unique and reported on the manager.

• Put the screen to sleep: Put the screen to sleep when robot enter in sleep mode.

• Allow follow me: Allow follow me when the robot is stopped.

• Use external speaker: Use external speaker for ROC-E and Noeme's sounds.

• Default wait release sound: Select the default wait release sound when the robot is in wating release on a saved pose.

• Nb retry on move failed on first step: number of move attempts if move fails at first stage.

• Nb retry on move failed on other step: number of move attempts if move fails at other stages.

• Nb retry on move failed on multidest: number of retry attempts in the event of a failed multidestination trip.

• Veh to destination, distance goal tolerance: distance in cm around the destination where the robot is considered to have arrived.

• Veh to destination, yaw goal tolerance: angle in degrees with respect to the destination where the robot is considered to have arrived.

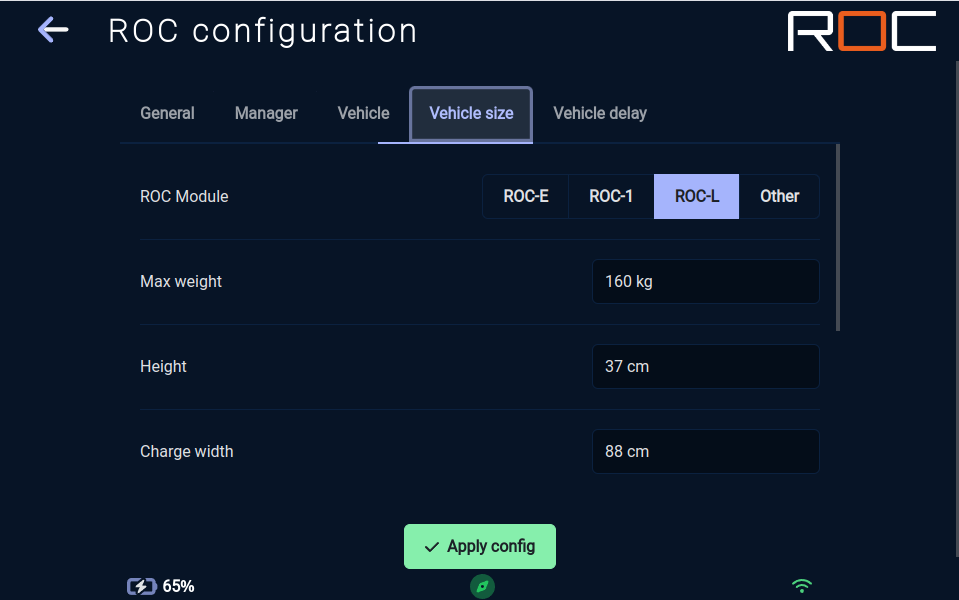

Vehicle - Size

This page allows you to view/modify the following parameters:

• ROC Module: type of active ROC module.

• Max weight : maximum weight of the robot with its load.

• Height : total height of the robot.

If the module is of type ROC-EP or ROC-P

• Charge width : width of the load being transported.

• Charge depth : depth of the load being transported.

• Height with charge : total height of the robot with its load.

• Charge max speed : maximum speed of the robot authorised when carrying the load.

If the module is of type Other

• Max width : maximum width of the robot.

• Max depth : maximum depth of the robot.

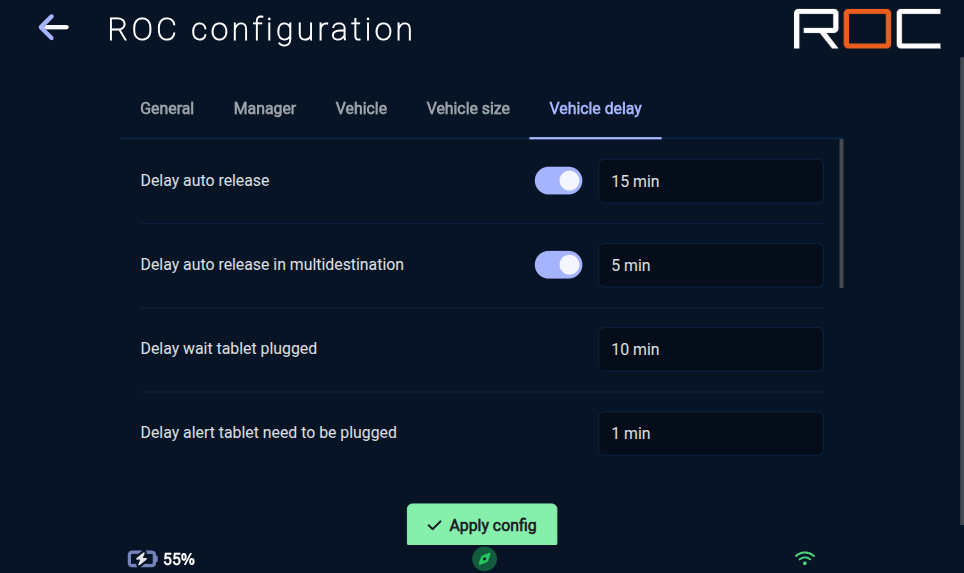

Vehicle - Delays

This page allows you to view/modify the following parameters:

• Delay auto release: automatic release delay on arrival at first stage (robot without load).

• Delay auto release in multidestination: automatic release delay on arrival at other stages (robot potentially loaded).

• Delay between sound on wait release: delay between 2 tones to indicate waiting for release.

• Delay between retry on move failed: waiting time between 2 attempts if the move fails.

• Delay before retry on waiting pose: waiting time before retry when the robot is in a waiting position.

• Delay before standby: waiting times once the robot is charging and before it goes into standby.

• Delay between 2 attempts when paused : waiting time before automatically resuming a paused move.

• Lift - Delay in continuing to ascend after contact: the elevator will continue to ascend after detecting contact for the defined delay. Used for attaching to shelves, this setting is only visible for ROC-P or ROC-EP type tops.

Some delays can be activated/deactivated with a switch. When the delay is disabled, the functionality is deactivated, for example: if the switch for delay before standby is disabled, the vehicle will never go to standby.

Buttons

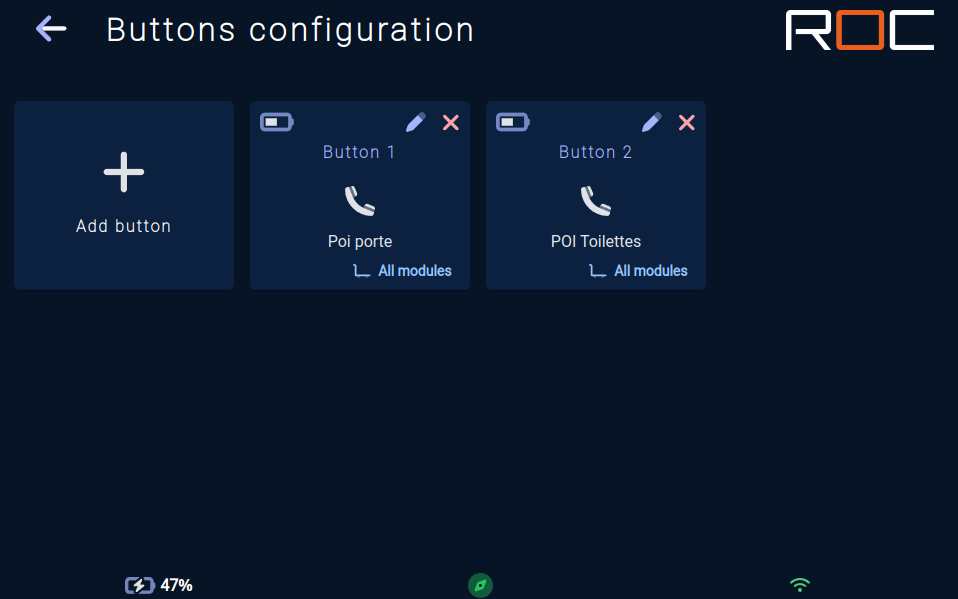

This page lists the configured buttons.

To add a new button, click on the "Add button" button.

To modify a new button, click on the pencil associated with the button.

To delete a button, click on the red cross associated with it.

Add a button

To add a new button configuration, click on the "Add button" button.

If the application is configured as manager and vehicle, an automatic mode will be proposed; otherwise, the manual mode will be displayed.

Follow the steps to create a new button.

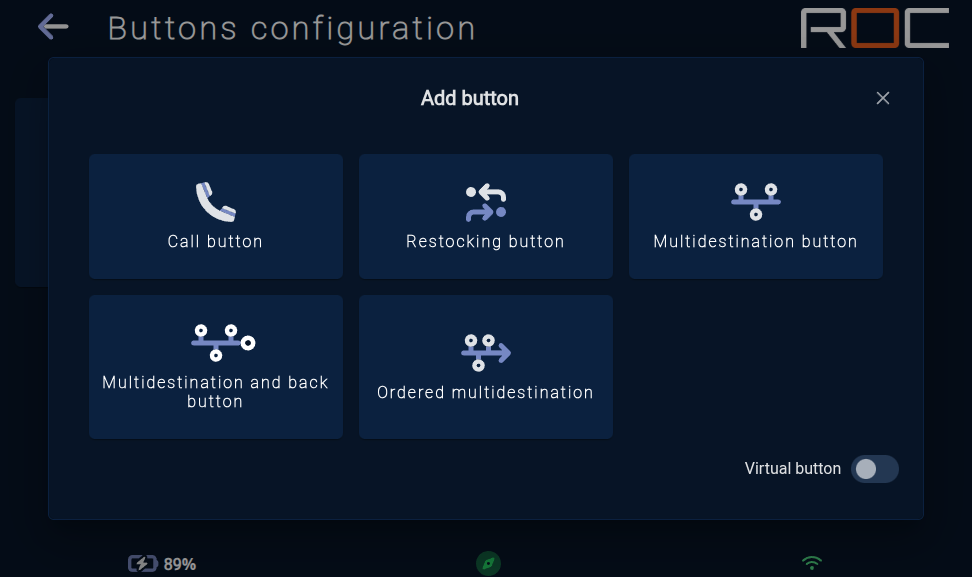

Button type

The application currently supports 5 button types:

• Call button: Once there, the user can choose the next step or release the robot..

• Restocking button: When the associated button is pressed, the robot will move to the first associated destination.Once there, the user can only release the robot, and it will move to the second associated destination.This type of configuration may be useful in the case of workstation replenishment, where the call is launched from the workstation, and the robot moves first to the warehouse where it will be loaded, and then to the user's workstation.

• Multidestination button: When the associated button is pressed, the robot will move to all associated destinations, from nearer to nearer.

• Multidestination and back button: When the associated button is pressed, the robot will move to all the associated destinations, from nearest to nearest, ending at a specific, configured last position.

• Ordered multidestination: When the associated button is pressed, the robot will move to all associated destinations in the defined order.

A button can be declared “virtual”; in this case, it will never be interrogated by the manager and can only be “called” via the modbus protocol or APIs.

Constraints

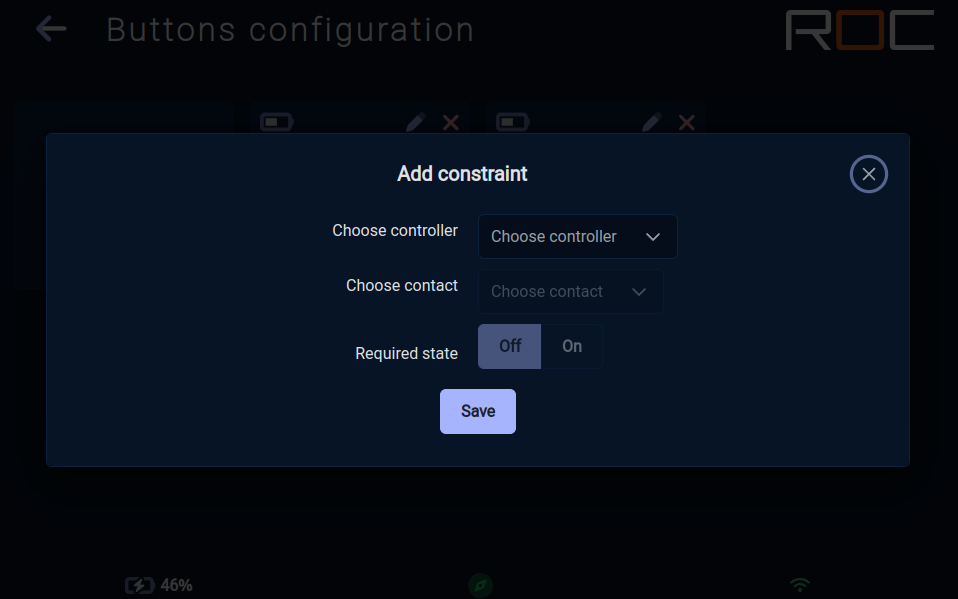

For each step, you can set constraints by clicking on the padlock associated with the step.

These constraints are linked to the LoRa controllers connected to the solution (see section on LoRa controllers);

To define a constraint, you must indicate:

• the LoRa controller where the sensor that will define the constraint is connected

• the LoRa controller contact

• the state of the contact expected to validate the step

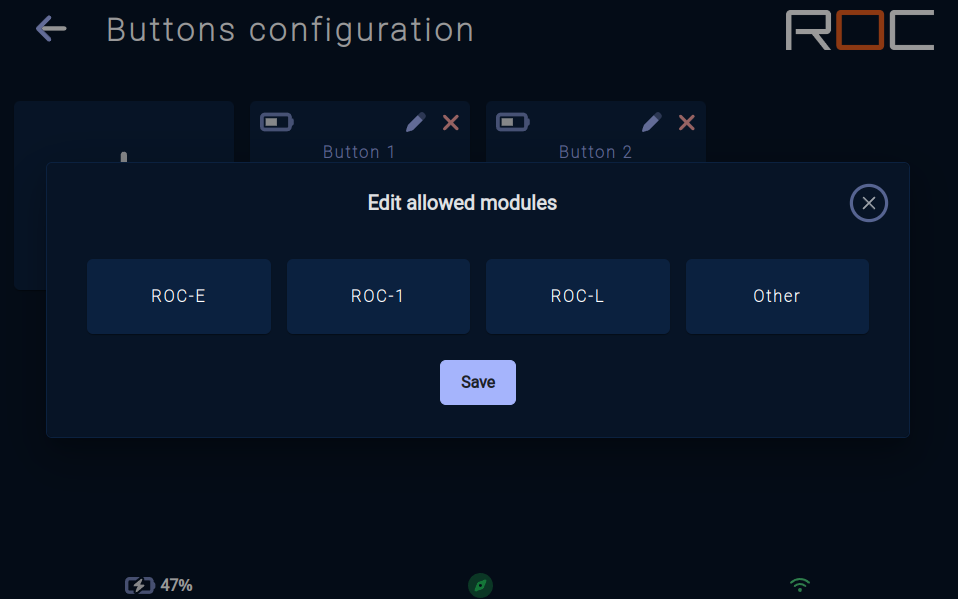

Module type

Once a button has been created, you can restrict the calling of these buttons to certain types of ROC module; to do this, click on the "All modules" link at the button level, then select the module(s) authorized to respond to a call from this button.

Vehicles

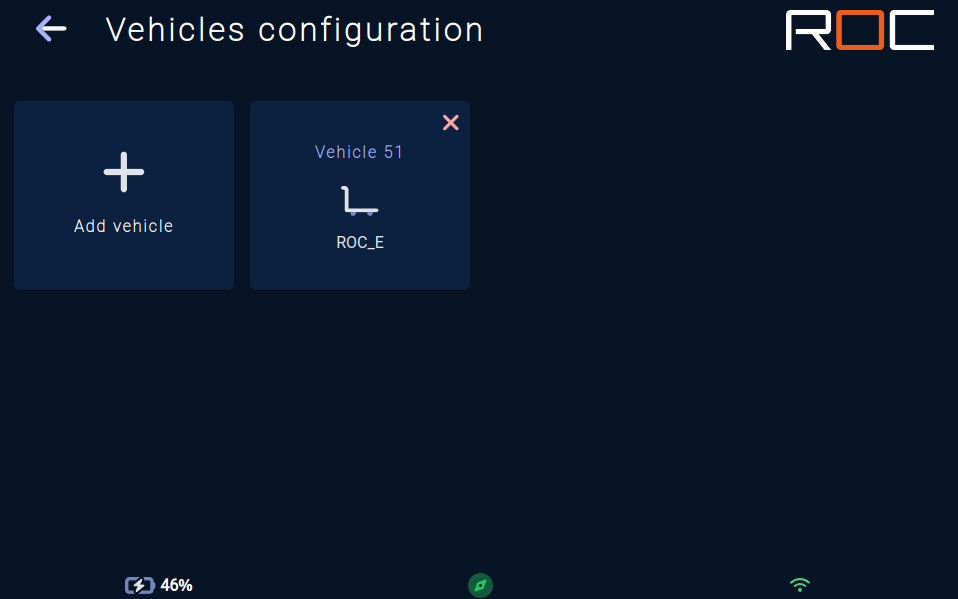

This page lists configured vehicles.

To delete a vehicle, click on the red cross associated with the vehicle.

To add a new vehicle, click on the "Add a vehicle" button and complete the required information.

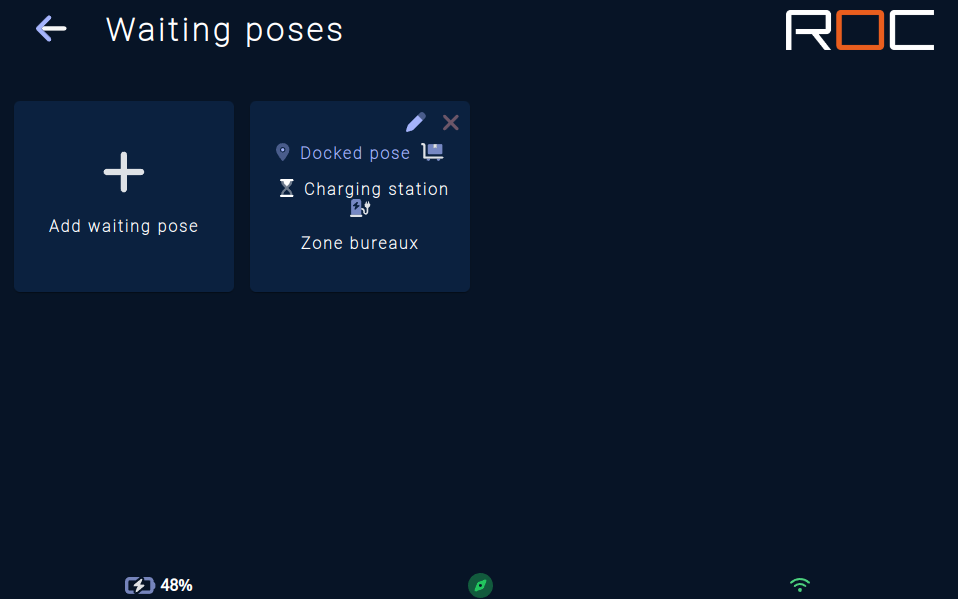

Waiting points

In some cases, several robots will need to go to the same saved pose at the same time.

To prevent robots from self-blocking, it is possible to set up waiting points so that one of the robots waits on the position until the other robot has left the saved pose.

Prerequisites

To add a new waiting point, you must first create:

• The saved pose where there may be a conflict.

• The saved pose corresponds to the waiting point.

• A configurable zone must contain the saved pose where there may be a conflict.The robot will send a message to the other robots to indicate that the space is free when it leaves this zone.

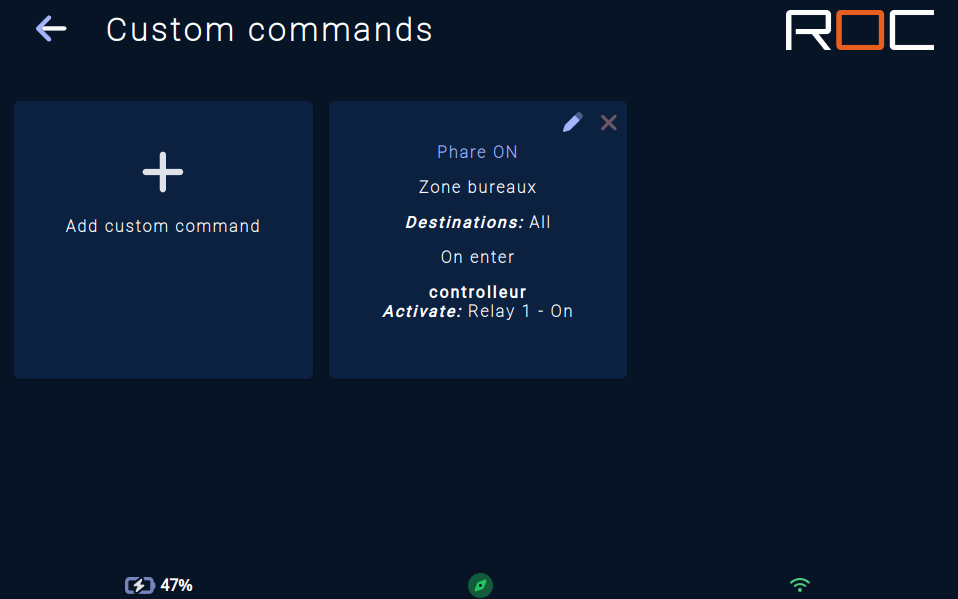

Custom commands

Custom commands can be created to instruct a LoRa controller to activate one of its relays at a particular time, or to pause robot movement depending on the state of a LoRa controller contact.

To add a custom order, you must indicate:

• a title

• the trigger zone (create a customizable zone on the map as a first step)

• the list of saved poses for which the order is to be sent (select nothing to apply to all destinations, activate “All except” to select only those positions where the behavior should not be triggered)

• the triggering moment (on entering the zone, on leaving the zone, on a movement error, as long as the robot is in the zone)

• the LoRa controller relay to activate or the contact to wait for

Examples of use: open an automatic door, switch off a zone alarm system, wait for a door to open before continuing...

LoRa controllers

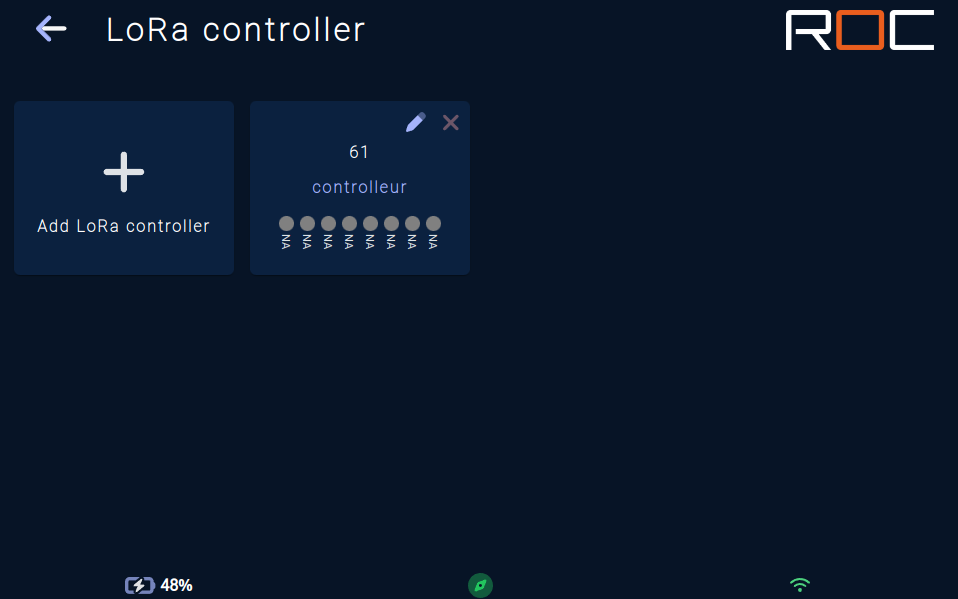

This section lets you add, modify and delete LoRa controllers for use in other configurations.

When a controller contact is active, the dot will be green.

When modifying a LoRa controller, it is possible to remotely retrieve the configuration of the controller's contacts. Once this configuration has been retrieved, you can modify the configuration of a contact remotely.

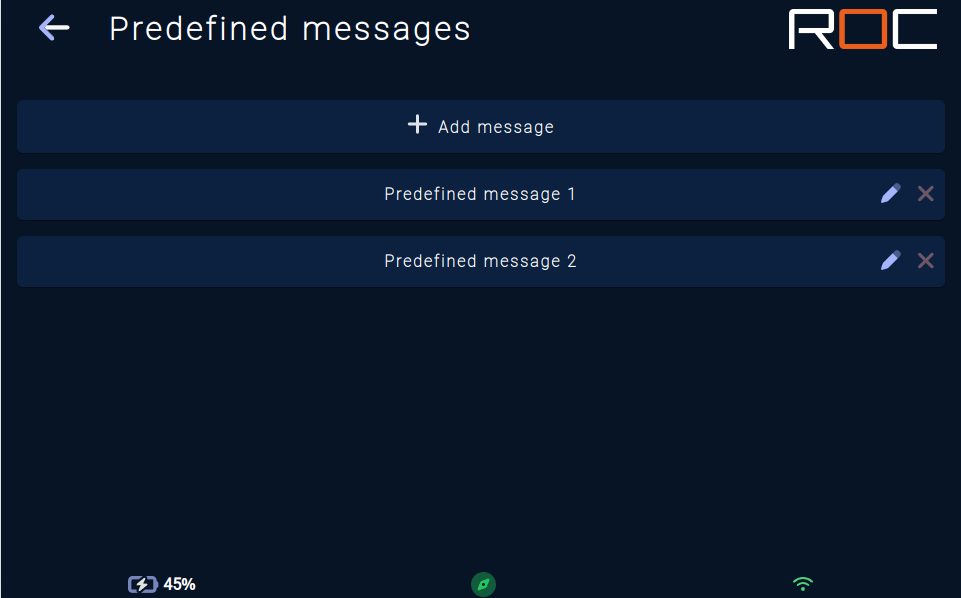

Predefined messages

This section allows you to add, modify and delete predefined messages for use when the robot moves.

Noeme application

This menu gives you direct access to the vehicle's application.

Please refer to the Noeme application documentation for further details.

Map

This section allows you to:

• add, move and delete saved poses.

• add or remove docked poses.

• add or remove shelf poses.

• modify names, icons and colors of saved poses, charging stations and docked poses.

• configure control of a LoRa controller relay when the robot is in position.

• restrict access to positions to certain module types.

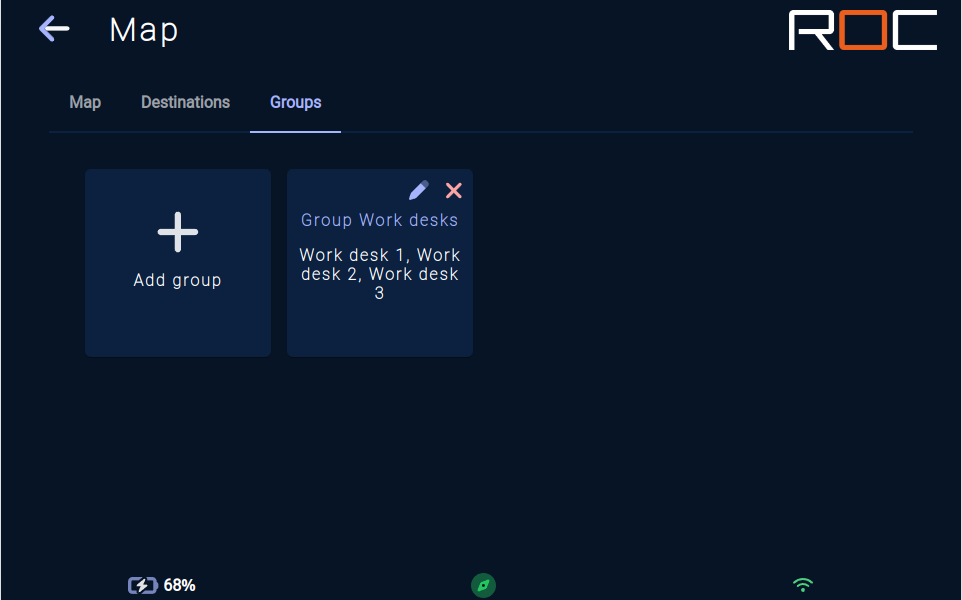

• manage groups.

Add a location

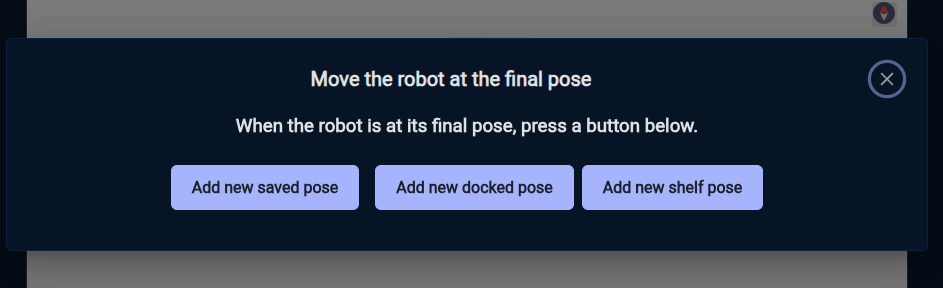

To add a location to the map, click on the “+” button.

Depending on whether or not the ROC-P module is present, you can create three types of positions:

• a saved pose

• a docked pose

• a shelf pose

Saved pose

This type of position corresponds to a classic position; the robot will move to this position with an authorized margin of several centimeters.

Docked pose

This type of position corresponds to a precise position; the robot will move to this position with a margin of error of less than one centimeter.
This type of position requires a marker so that the robot can position itself precisely.
In the case of the ROC-P, this type of position is required for picking stations or shelf placement positions.

Shelf pose

In the case of the ROC-P, you must create this type of position at the location where you want a shelf to be picked up.

Modify a position

Depending on the type of position, several options can be modified.
Regardless of the type, you can modify the following options:

• Color: icon color.

• Icon: icon associated with the position.

• Name: name of the position.

• Activate a relay on the position: this option allows you to activate a relay on a LoRa controller when the robot is in this position.
  To activate a relay, select:

  • the controller.

  • relay 1 or 2.

  • The action on the relay (On/Off - to activate the relay when the robot is present, Pulse to send a pulse to the relay when the robot arrives).

Docked pose

In the case of the ROC-P, you can indicate the type of station present at this position:

• None: no station present, use this configuration for shelf placement.

• Loading: for gravity loading stations.

• Unloading: for gravity unloading stations.

• Picking: for picking stations.

In the case of stations, you can indicate whether or not there is crate detection by completing the contact section.
You must indicate the dimensions of the loads that will be picked up at these stations as well as the height to which the elevator must be raised to pick up the load.

Shelf pose

In the case of the ROC-P and a shelf pose, you must specify the dimensions of the shelf that will be picked up at this position, as well as the height to which the lift must be raised to pick up the load (maximum height; the lift will stop automatically when it detects contact).

Docked or shelf pose

A set of advanced parameters allows you to configure the robot's approach to these positions:

• Undock distance: distance the robot must travel to exit this position.

• Approach distance: distance at which the robot positions itself before starting the docking phase.

• Disable safety distance: distance at which the robot deactivates its safety features to allow it to approach obstacles in the final position.

• Guided distance: distance during which the robot can no longer turn before reaching the final position.

• Max speed: maximum speed allowed during the docking phase.

• Contact allowed: allows or disallows the robot to touch and push against an obstacle.

• Contact success tolerance: tolerance in mm for considering the robot's position relative to the final position as a success

• Motors amps threshold: maximum motor amperage threshold allowed during the docking phase.

• Motors amps timer threshold: maximum duration allowed to exceed the maximum amperage threshold.

Groups

You have the option of creating position groups. A group consists of a main position and several secondary positions.

When a mission is configured to move to a main position in a group, the screen will automatically display the list of secondary positions when the robot arrives at that destination. The user can then ask the robot to move to one of the secondary positions to “complete” the route.

On the home page, the secondary positions of the groups will be hidden and a “+” icon will be added to the main positions of the groups. By clicking on this “+”, you will then be able to access the list of secondary positions for the group.

Lift

This section allows you to interact with the ROC-P module lift.

• The top button allows you to raise the lift to its maximum height.

• The second button allows you to raise the lift as long as the button is held down.

• The penultimate button allows you to lower the lift as long as the button is held down.

• The bottom button allows you to lower the lift to its lowest position.

When the lift is moving, the red button allows you to stop its movement.

The button with the cogwheel allows you to configure the height of the top of the lift relative to the ground. To change the configuration, click on the button and enter the actual height of the top of the lift relative to the ground in the input field. This configuration allows the vehicle to check for obstacles before lowering its load.

Connectivity

This page lets you activate, deactivate and configure the various WiFi functions for the module and Noeme.

This page also gives vehicles access to port forwarding configuration.

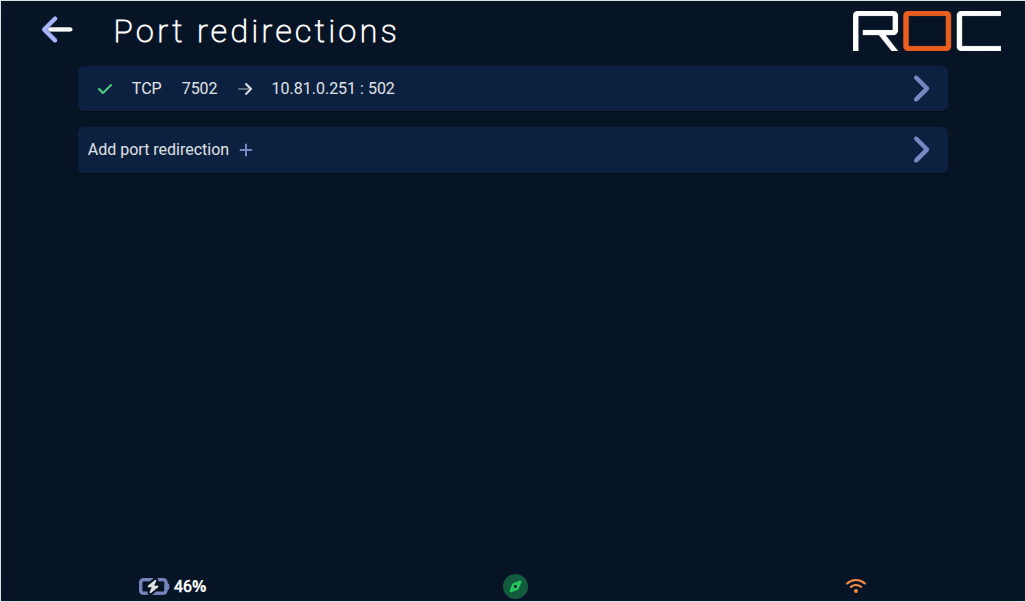

Port redirections

This page lets you enable, disable and configure vehicle port forwarding to other equipment.

If you connect a piece of equipment to the vehicle's wired network and it is connected to your WiFi network, port forwarding allows you to access your equipment via your WiFi network and a port forwarding configured on the robot.

Select map

This page allows you to change the vehicle's active map 🗺️ among the maps created or imported on the vehicle.

It also allows renaming and deleting sites, as well as deleting maps.

In this "tree" view, the sites (containing the maps) are visible on the left side of the tree, and the maps, their names, and their previews are located under the parent site.

The pencil button ✏️ allows you to modify the name and description of a site. The trash button 🗑️ allows you to delete, with confirmation required.

It is not possible to delete the active site or the active map.

Once the selection is complete, the button at the bottom of the page allows you to initiate the map change.

The vehicle will start by replacing its active map, then it will perform a relocation to start autonomous navigation on its new map.

Import / Export

This page lets you import/export configurations.

Export: click on the "Export" button to download configurations (to save them or to import them on another robot or manager).

Import: click on the "Import" button, then select the file to be imported.

Languages

This page lets you choose the application language.

User accounts

This page allows you to add, modify or delete a user account.

Sound volumes

This page lets you set a maximum volume for each scenario of sounds emitted by the vehicle.

The general volume acts as an upper limit for all other values.
*If set to 30, other volumes cannot exceed 30.

The following scenarios can be configured:

• Initialization: Sounds when the vehicle is started.

• Hotspot connection: Sounds emitted when a device is connected to the vehicle's WiFi hotspot.

• IHR: Sounds emitted when the vehicle is expecting human intervention (Intervention Humaine Requise).

• Obstacle: Sounds emitted when the vehicle detects an obstacle while traveling.

• Special behaviors: Sounds emitted when the vehicle is in a particular state.

• Autopilot: Sounds emitted during the steps of sounds in a sequence of the vehicle's autopilot mode.

• ROC sounds: Sounds emitted during missions.

• Settable areas: Sounds emitted when the vehicle enters, exits or is in a settable area in which sound behaviors have been configured.

• Safety disabled : Sounds emitted when safety disabled on docking.

Maintenance mode

Click this button to activate or deactivate maintenance mode.

This button is only visible on a manager, and is used to pause the system.

If maintenance mode is enabled, the button icon will be orange.

Refresh

Click this button to force a complete page refresh.

This action may be useful after an application update.

Restart

Click on this button to completely restart the application and return it to its start-up state.

Statistics

The statistics page gives you access to a set of graphs and heatmaps showing how the solution is working.

The Export button lets you export the application's raw data to generate your own usage statistics.

Home

Provides an overview of solution usage.

A filter system lets you select the date and period of data analyzed.

Calls

Allows you to view a set of graphs on calls made to the solution.

Calls by button

View the number of calls per button.

Destinations

Provides statistics on the most popular destinations, as well as a heatmap.

Delays

Allows you to consult statistics on intervention times on the solution:

• Travel time

• Assistance in the event of a problem

• Release time

Movement error

View statistics on displacement errors and a heatmap to see where problems occur.

HIR

View statistics on HIR (Human Intervention Required) errors and a heatmap to see where problems occur.

Missions

The "missions" page is only available to managers.

It allows you to consult the list of current missions and to create new missions.

Creating a new mission

Create new mission

By clicking on the "Create new mission" button, you can create a new customized mission to send to the robots.

• Step 1: choose between a multidestination mission or an ordered multidestination mission.

• Step 2: choose destinations.

• Step 3: choose the type(s) of module(s) authorized for this mission (if you don't select a module, they will all be authorized).

• Step 4: choose one or more robots authorized for this mission (if you don't select any robot, they will all be authorized, if you select only one robot, the mission will be directly assigned to it).

Start button mission

By clicking on the "Start button mission" button, you can create a new mission to be sent to the robots from the pre-configured buttons. This works in the same way as pressing a LoRa button.

• Step 1: choose the pre-configured button.

• Step 2: select one or more robots authorized for this mission (if you don't select any robot, they'll all be authorized, if you select just one robot, the mission will be directly assigned to it).

Mission lists

The first list shows priority missions.

The second, non-priority missions (by default).

A non-priority mission will be given priority if the first robot is unable to carry out the mission (as soon as another robot is available, it will give priority to this mission).

Mission

Basic information is displayed:

• Active mission stage and destination.

• Mission number or associated button.

• The robot assigned to the mission.

3 interaction buttons are available:

• Skip priority mission.

• View mission details.

• Cancel mission.

Mission details

This popup allows you to view the mission details with all its steps.

Release a robot

When a robot is waiting to be released, the "Release robot" button appears.

This button lets you release the robot so that it can move on to its next step, or return to charge if its mission has been completed.

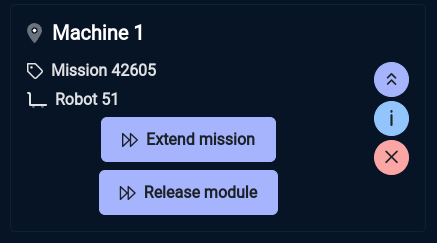

Extend a mission

When a robot is waiting to be released and has completed its mission, the "Extend mission" button is displayed.

This button lets you specify the next steps in the robot's mission.

The robot will be automatically released when it receives these new steps.
