Advanced settings

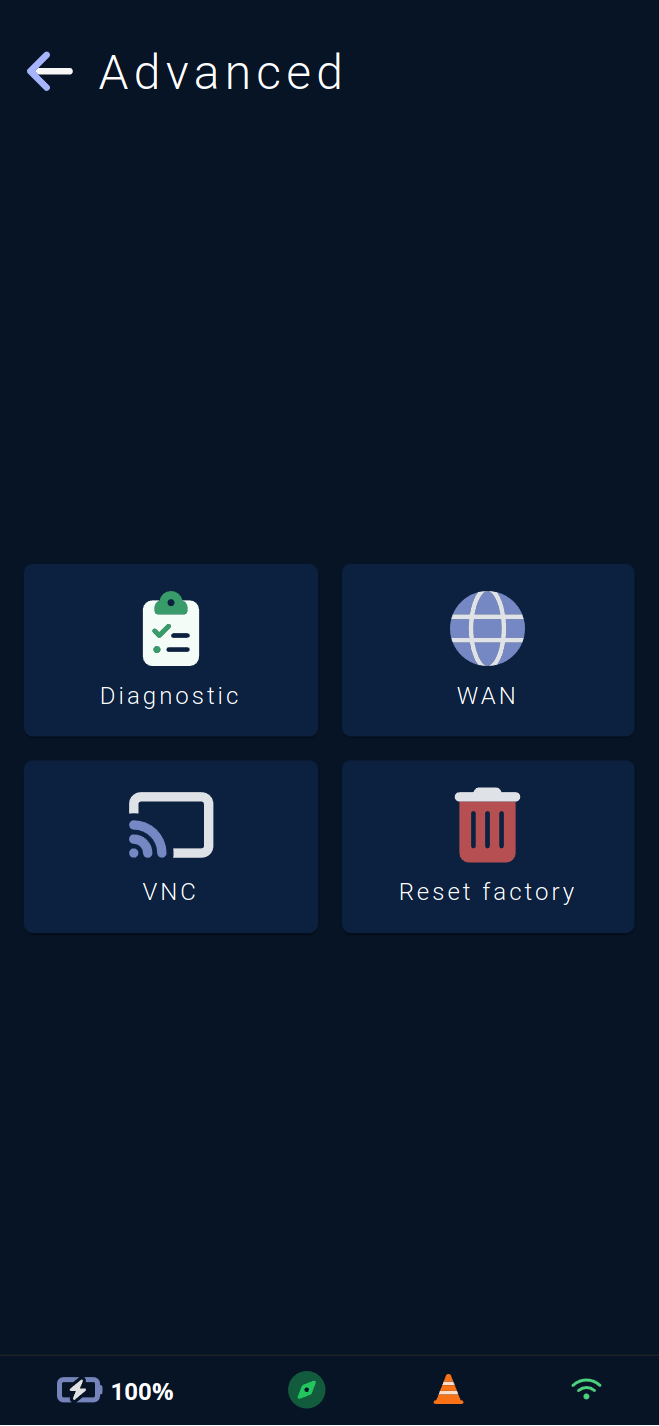

../../_images/advanced.png

The Advanced parameters menu provides access to other vehicle operating parameter pages.

  • Vehicle diagnostics 📋.

  • Management of the vehicle's external connection 🌐.

  • The advanced maintenance page 🖥️ for the Rob'Occ team.

  • The reset page 🗑️ to factory settings.

Note : The diagnostic icon will be lit in red if an internal error is in progress.

The external connection icon 🌐 will be lit in green if the vehicle has an external connection configured, and gray if this feature has been disabled.

Diagnostic

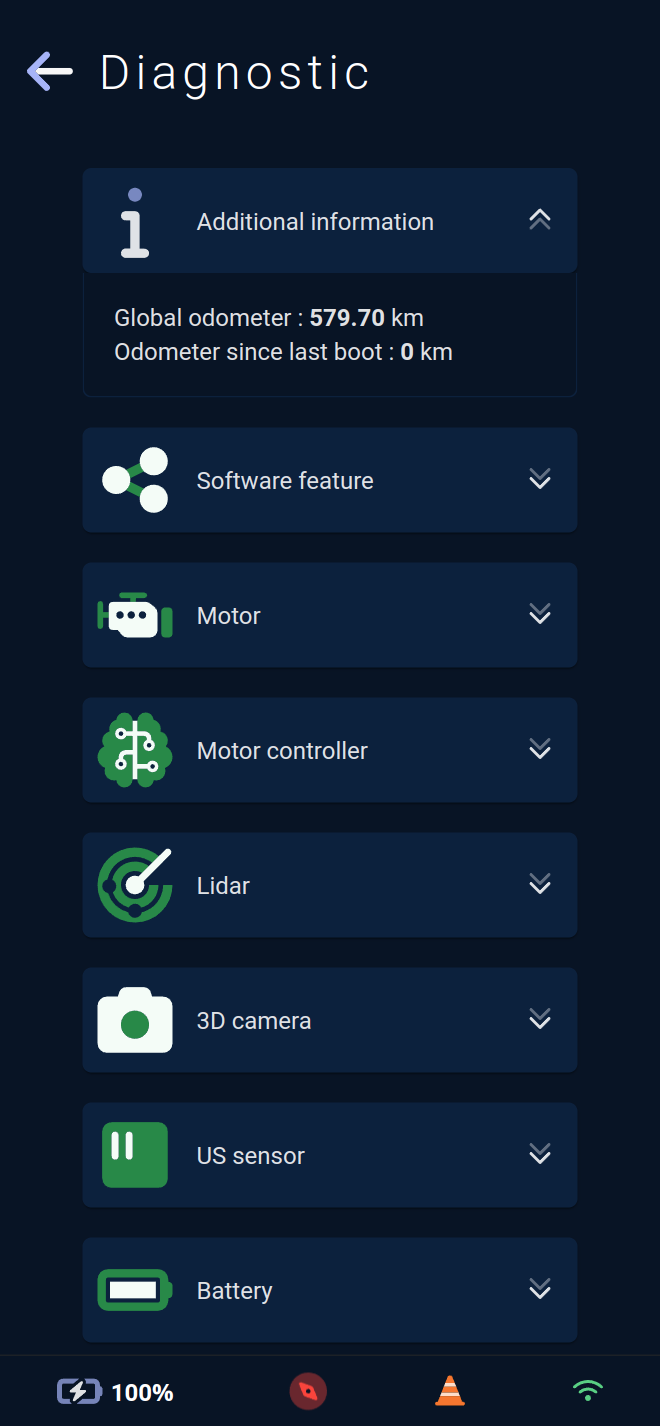

../../_images/diagnostic_ok.png

This page shows the status of the vehicle's various components and software bricks 📋 as well as the vehicle's mileage information.

The first section shows the vehicle's overall odometer 🚗, as well as the number of kilometers traveled since the vehicle's last startup

All components and software packages are listed in green ✅ if the vehicle has no issues.

Opening a category reveals the list of components within it.

In case of an internal error, the listing is replaced with a list of faulty components and/or software modules 🟥.

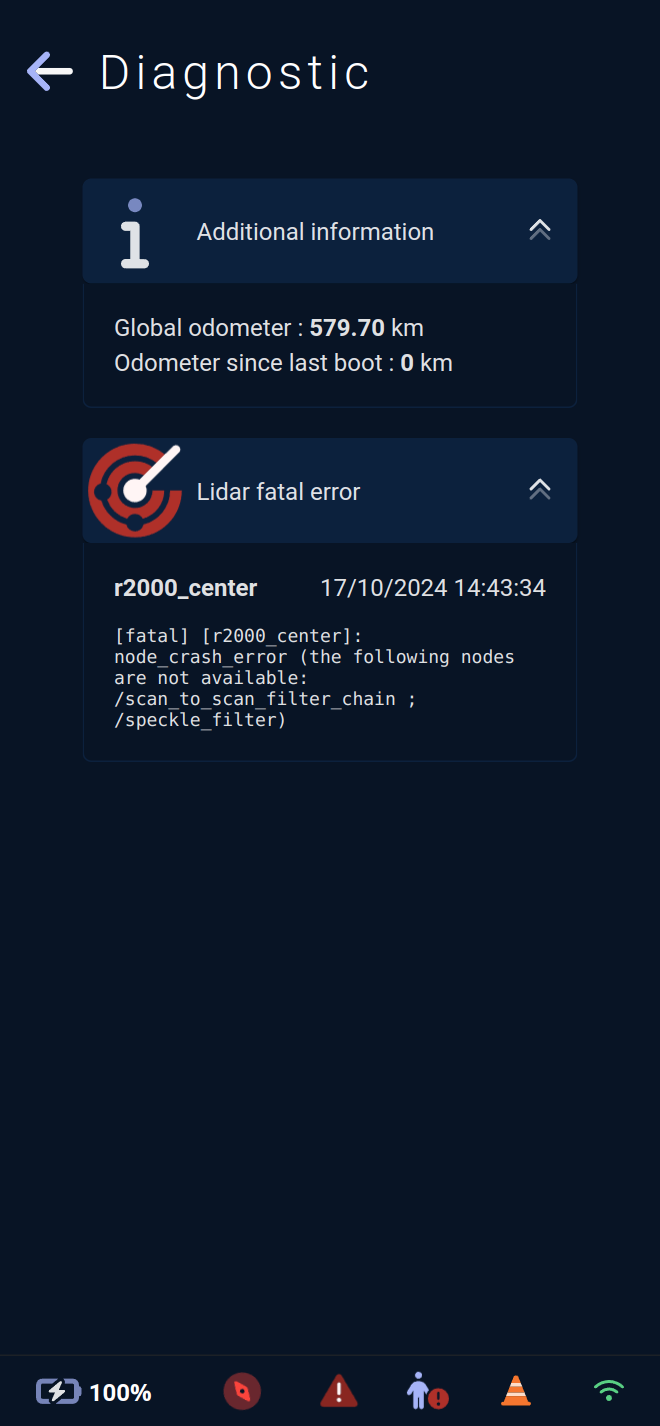

../../_images/diagnostic_ko.png

Details of the error are provided, showing the affected component and the time when the error occurred.

A summary of the error is also described, helping the Rob'Occ team understand what happened.

Note : When an internal error occurs, the warning triangle ⚠️ icon in the footer allows direct access to this page.

External connection configuration

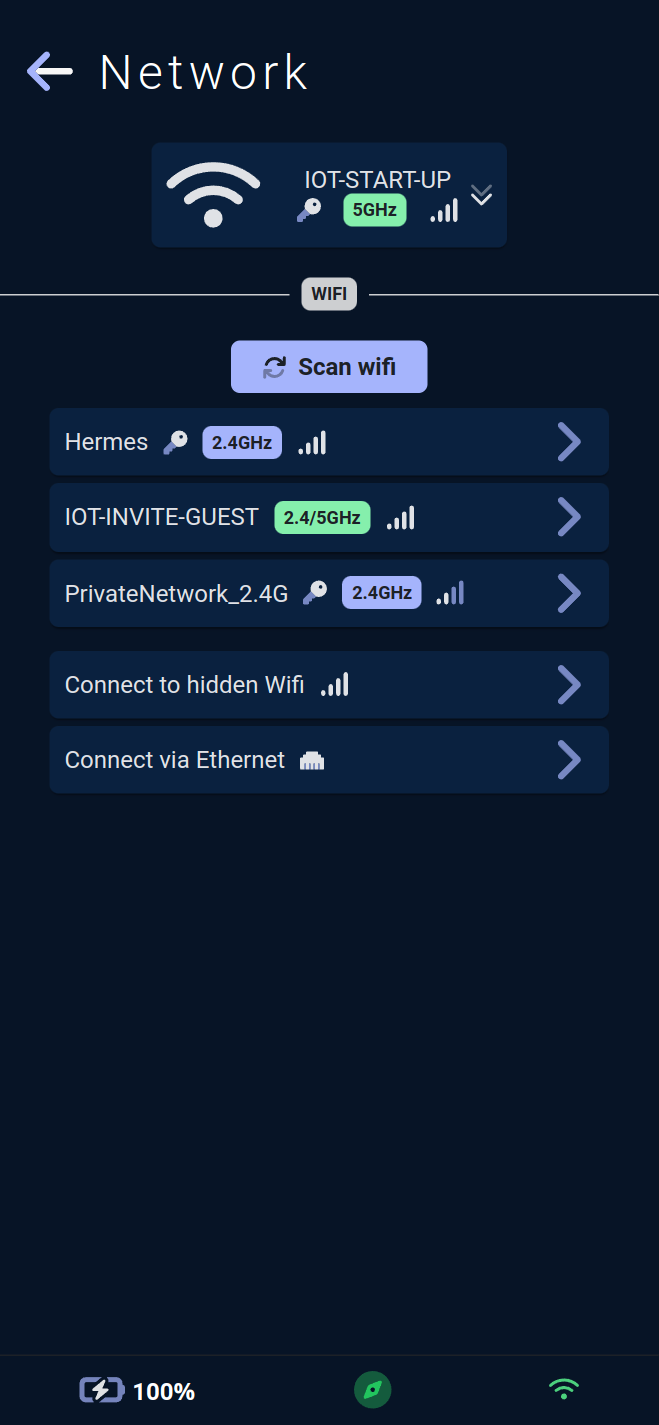

../../_images/wan.png

This page allows configuring the external connection of the vehicle.

The badge at the top of the page summarizes the status of the external connection, displaying a WiFi icon 🛜 or Ethernet icon based on the WAN configuration.

For WiFi connection 🛜 , a key icon 🔑 indicates if the WiFi network is secure, a 5Ghz or 2.4Ghz badge denotes its frequency, and an antenna bars icon 📶 shows the signal strength.

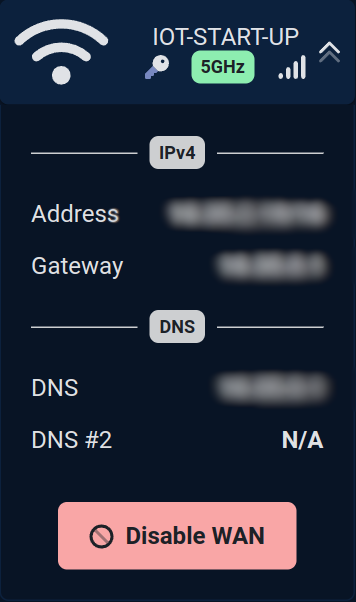

../../_images/wan_details.png

Opening it reveals additional network information (IPv4, DNS) and a button 🚫 to disable the external connection.

⚠️ Disabling the external connection will make the vehicle reachable only via the hotspot or through the module, and will prevent any remote maintenance.

A Scan WiFi button lists the WiFi networks detected by the vehicle. Beneath the listing, options to connect the vehicle to a hidden WiFi network or via Ethernet are available.

Note : To use WiFi connection externally 🛜 , the vehicle needs its WiFi USB key to be plugged in.

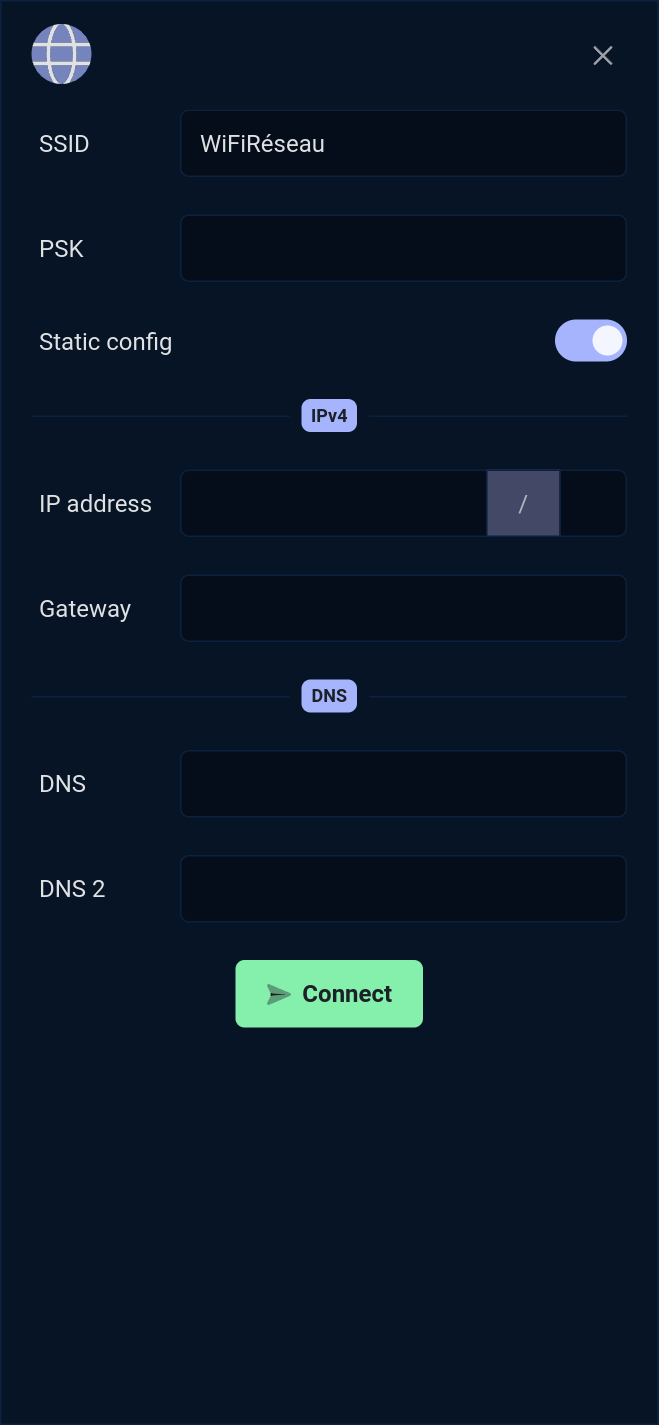

../../_images/wan_sidebar.png

Once a WiFi network is selected, a form to connect to it will appear. The pre-shared key (WiFi network password) is required, and a checkbox allows specifying network rules (IPv4, DNS) if necessary.

VNC

This page enables the Rob'Occ team to perform advanced maintenance.

Factory reset

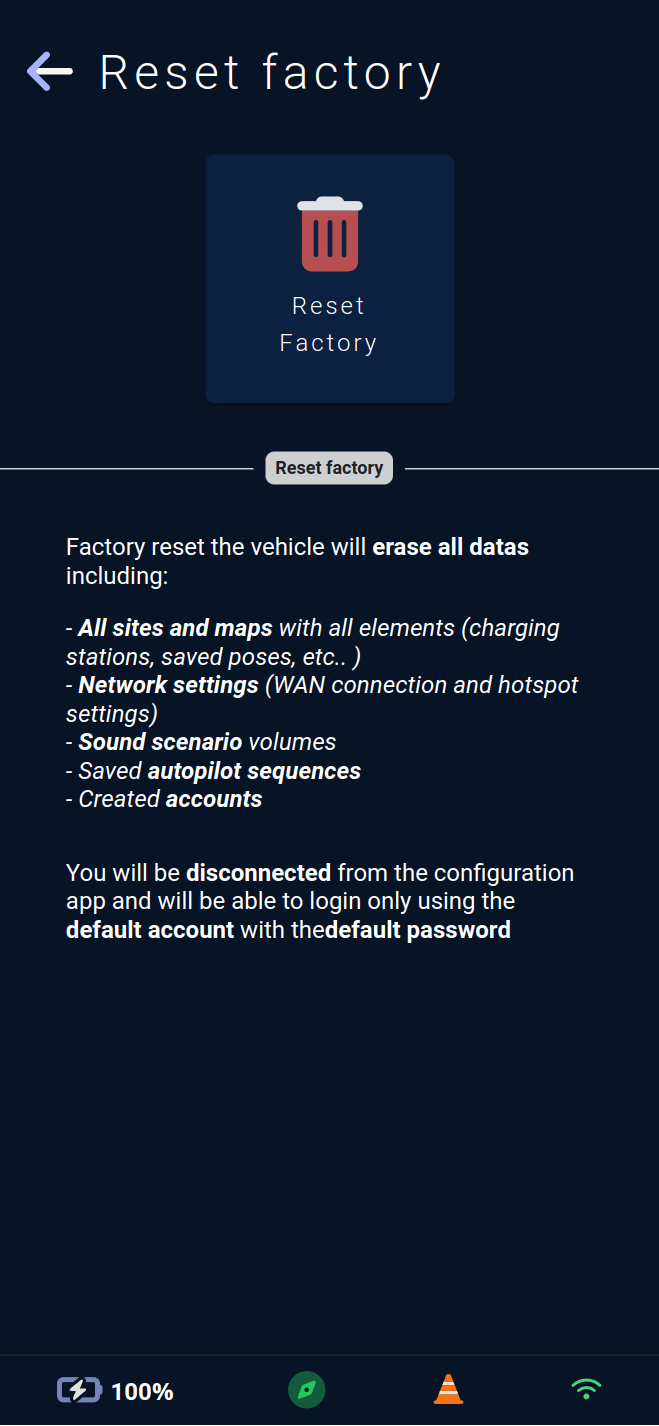

../../_images/reset_factory.png

This page allows you to reset the vehicle to its factory settings 🏭.

This will delete 🗑️ :

  • all sites and maps created on the vehicle, these being exportable via the Export sites page to keep a copy.

  • all settings ⚙️ made on the vehicle (sounds, networks, autopilots...).

  • all accounts 🧑‍🔧 created/modified.

Only the mileage will be conserved.

⚠️ Warning: this will automatically log you out of the application, and you will be able to reconnect via the default account and its default password..
